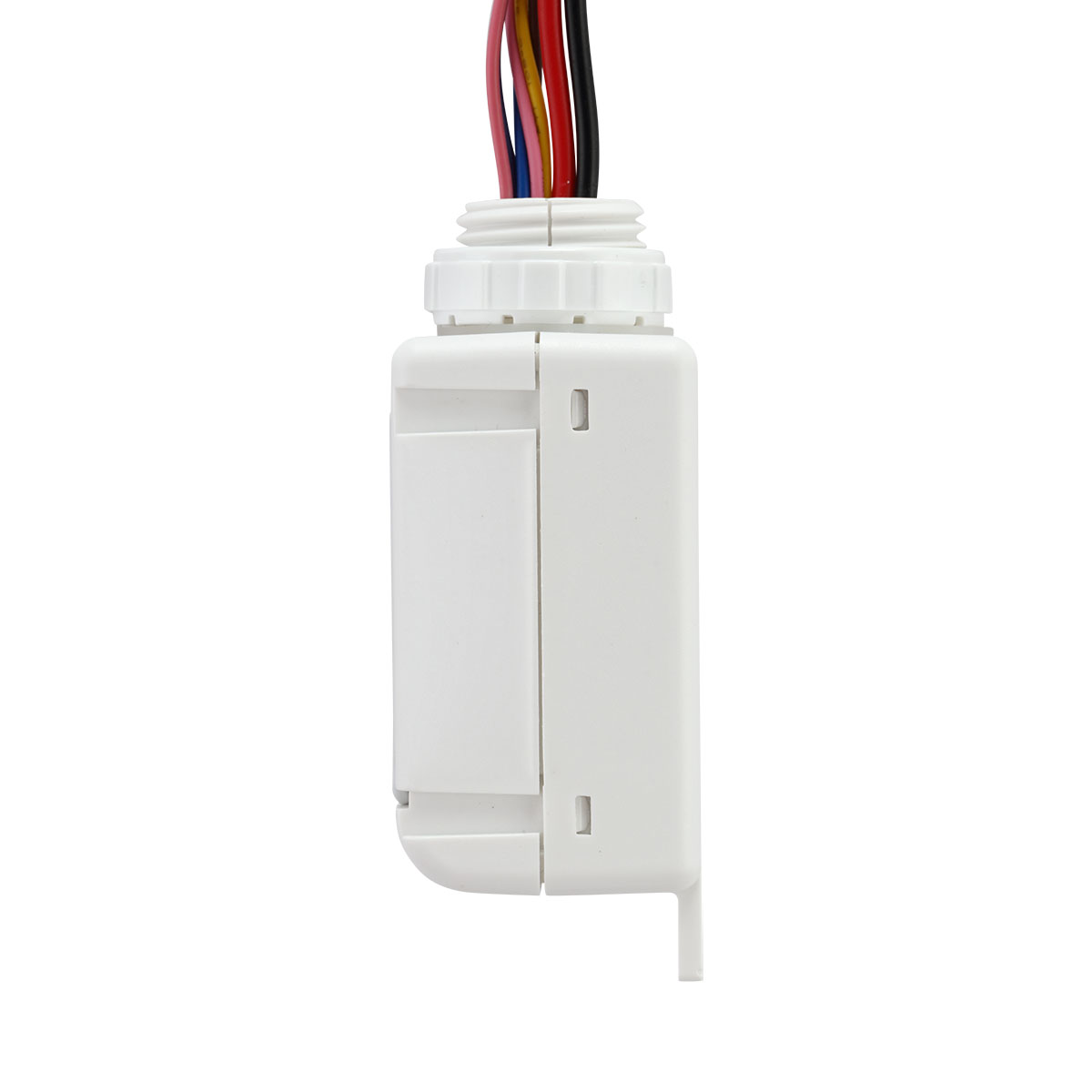

PPA102S Series

Line Voltage 6A BLE Fixture Controller

SKU: PPA102S.B1 Category:

Features & Benefits

PPA102S Bluetooth Fixture Controller is network based device of Keilton lighting system, enables to manage and operate the luminaires through smartphone app. It provides 0-10V Single/Dual output and 10A relay control for luminaires. It could be also equipped Keilton Eco-Sensor family product by plugging the sensor wire connector and activating the sensor ready function.



  • 120-277VAC Input
  • Integrated 6A relay
  • Offers 12V, 200mA output power to sensors
  • Attaches with standard 1/2″ knockout
  • Provides 0-10VDC single channel output

Applications

  • Retrofit of one or more commercial luminaires for Bluetooth control
  • Low voltage power to Eco-Sensors

Specifications

Part Number

PPA102S.B1

Component Type

Controller

Operating Temp

-30 to 65°C (-22°F to 185°F)

technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input Voltage

120-277V, 120V

AUX Voltage

12V

Control

Relay, Single 0-10V

Dimmability

0-10V

IP Rating

IP20

Color Offering

White

Application

Indoor

Mounting Options

Fixture KO

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
