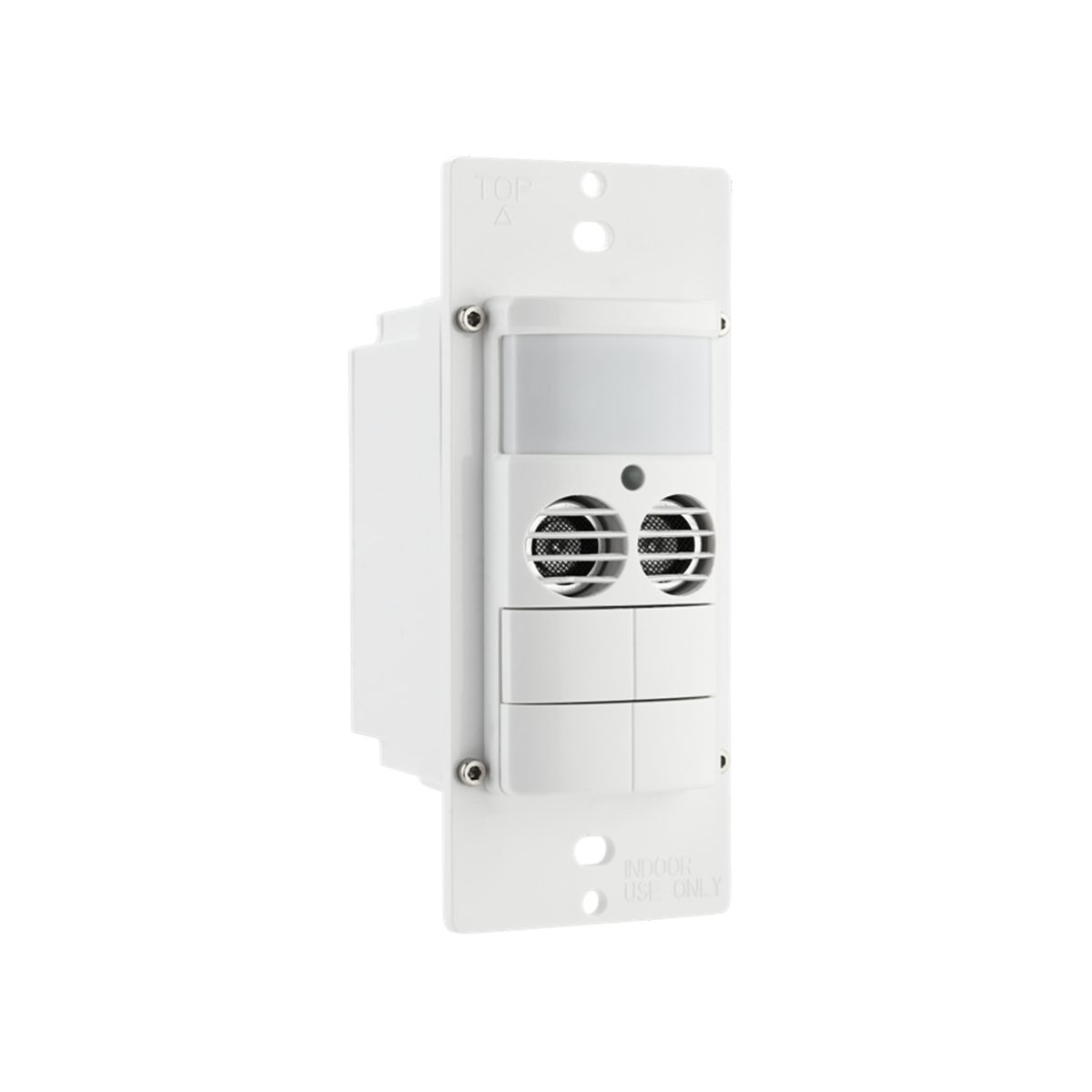

Line Voltage Dual Technology (PIR & Ultrasonic) Occupancy/Vacancy Sensor Bluetooth® Wall Switch
Features & Benefits
- Dual Technology (Passive Infrared & Ultrasonic)
- 120–277 V universal voltage
- Occupancy/Vacancy operation (2-in-1)
- Integrated PIR, ultrasonic sensor, and photo sensor with hold-off function
- 4-button Bluetooth® control (Dim Up, Dim Down, ON, OFF)
- Dimming buttons control associated lights within the same Bluetooth group
Note: The DWS102.A0 does not provide 0-10V dimming connections.
Specifications
Input Voltage
AC 120–277 V
Frequency
50 / 60 Hz
Output Voltage
AC 120–277 V
Output Current
6 A max
Output Power
720 W max @ 120 V
1662 W max @ 277 V
Bluetooth Transmit Range
100 ft max
Radio Frequency
2.4 GHz ± 75 MHz
Bluetooth Version
5.0
Housing Material
UL 94-5VA
Indoor/Outdoor Use
Indoor use only
Storage Temperature
-30 °C to 85 °C (-22 °F to 185 °F)
Color
White
Warranty
5-year warranty
Compliance
RoHS
Safety
cULus Listed LED Controller
E504054
FCC ID: 2A26YDWS102
IC ID: 33617-DWS102
DID: D061367
DLC: NLTRC5KL0TN
