universal voltage fixture controller
Features & Benefits

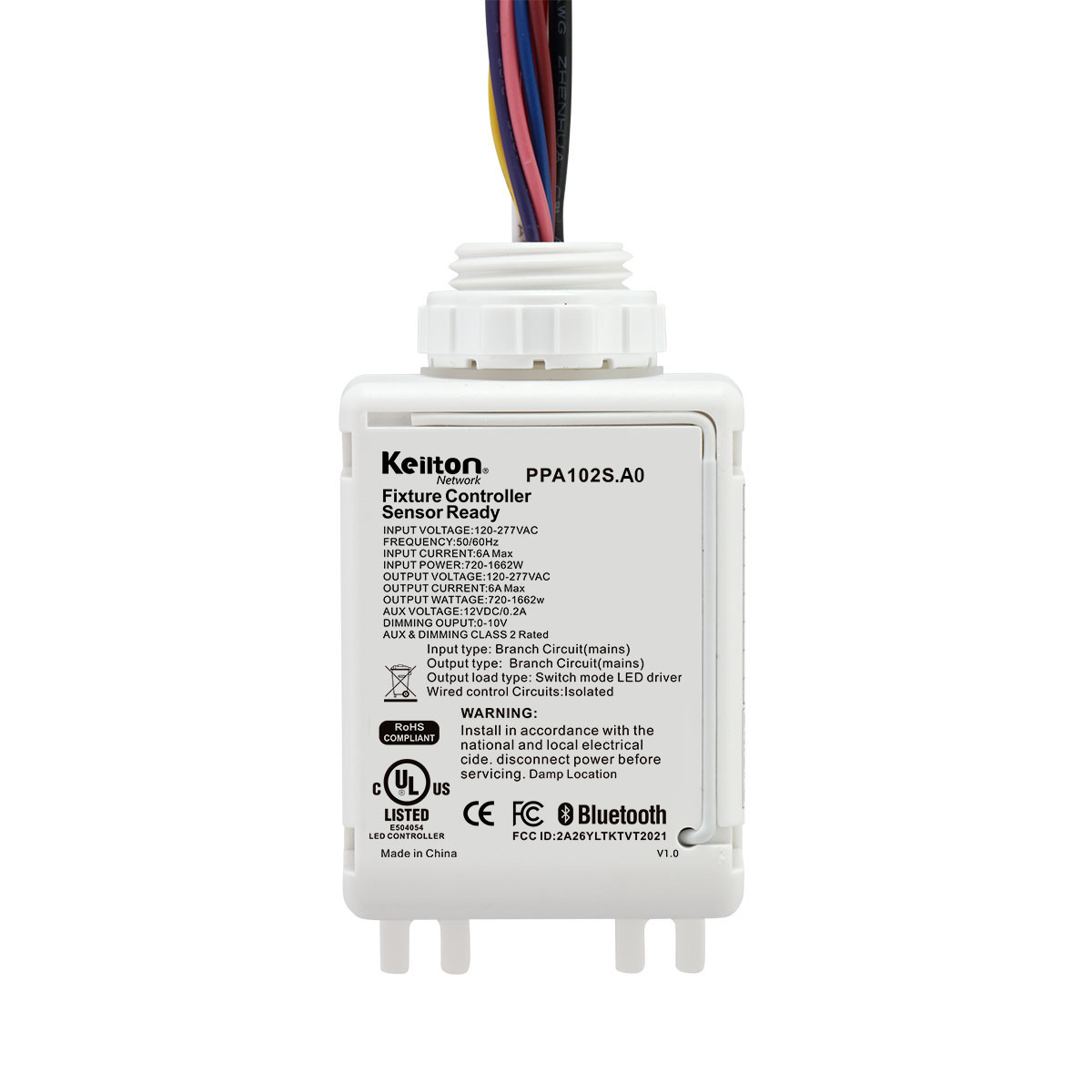

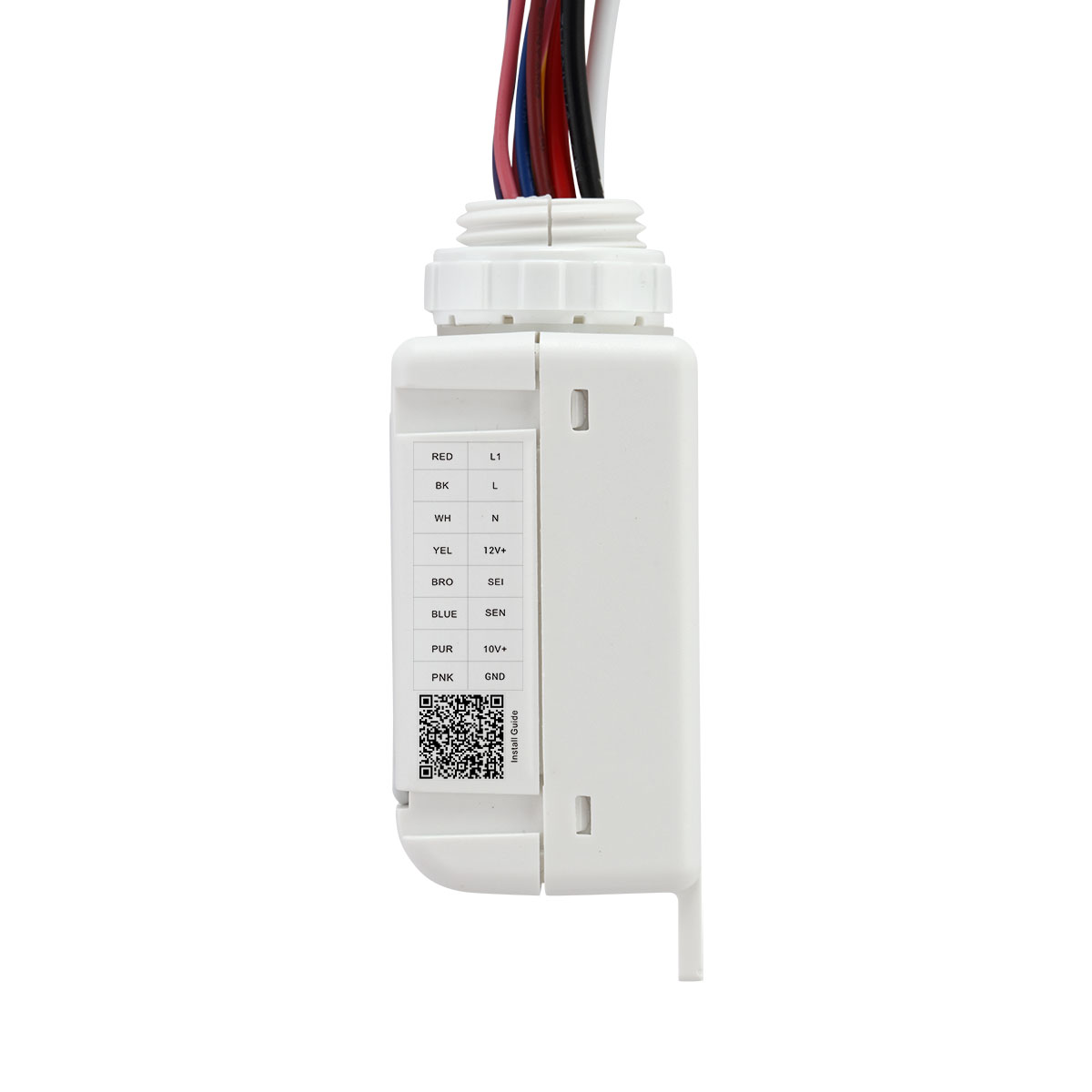

PPA102S Bluetooth Fixture Controller is network based device of Keilton lighting system, enables to manage and operate the luminaires through smartphone app. It provides 0-10V Single/Dual output and 10A relay control for luminaires. It could be also equipped Keilton Eco-Sensor family product by plugging the sensor wire connector and activating the sensor ready function.
- ½” threaded knockout connection
- Two sizes available with 6A or 10A relay control
- Available in 120-277V
- J-Box or External mount
- Plenum rated
Applications
- Retrofit of one or more commercial luminaires for Bluetooth control
- Low voltage power to Eco-Sensors
Specifications
Part Number
PPA102S.A0
aaa
aaa
Component Type
Controller
bbb
bbb
Technology
Bluetooth v4.2
Radio Frequency
2.4G Hz
Transmission Range
100ft
Input Voltage
120-277V, 120V
Aux Voltage
12V
Control Output
Relay, Single 0-10V
Dimmability
0-10V
Color Offering
White
Mouting Height
N/A
Sensor Type
Eco Sensor Port
Warranty
5 years limited warranty
Certification
FCC, CE compliant, cULus Listed, DLC listed, Plenum Rated, RoHs, UL1376 Gold
