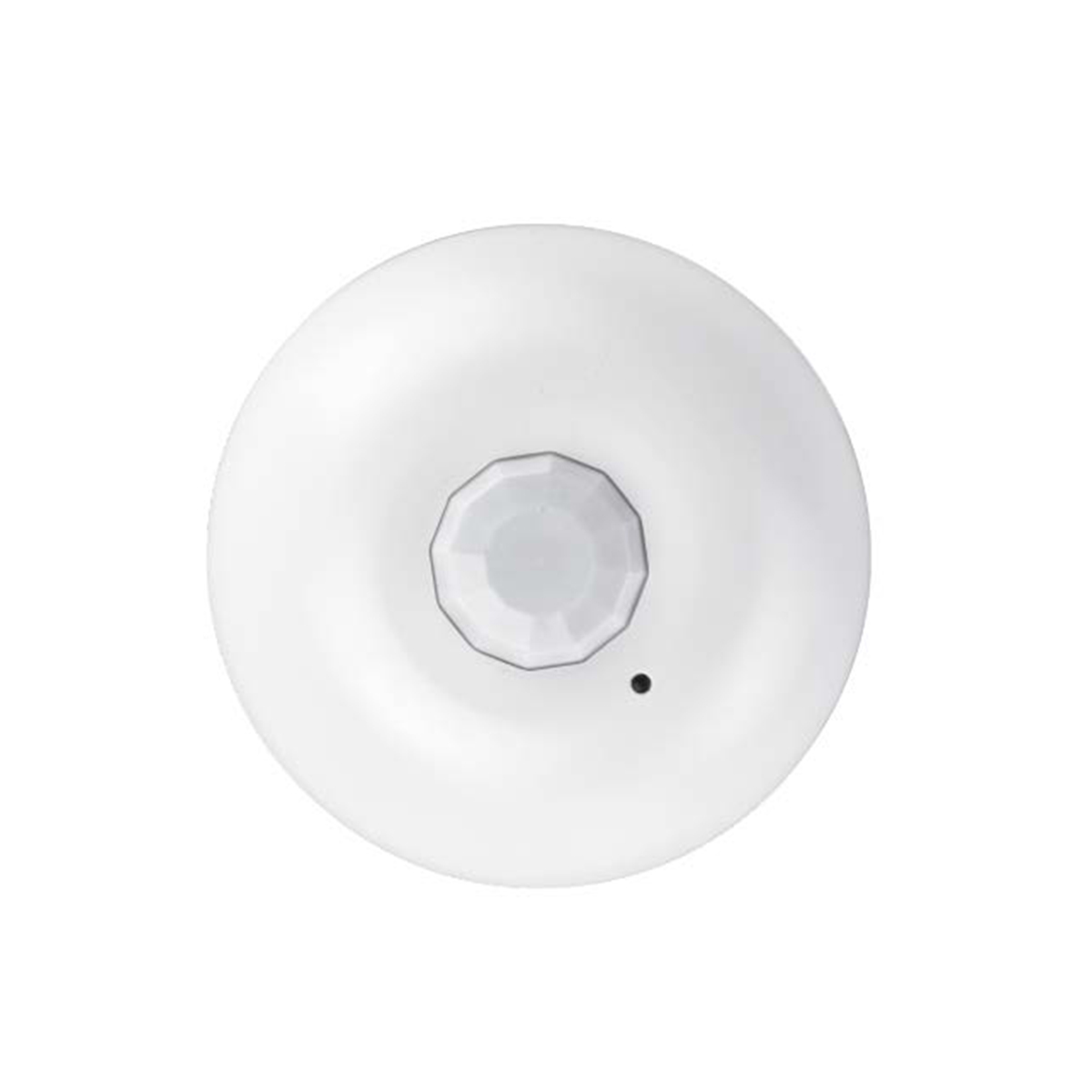

Line Voltage PIR Ceiling Sensor
Features & Benefits
- 120-277 VAC input
- 1520 sq ft room coverage with PIR sensing technology
- Wireless Bluetooth connection to other Keilton+autani devices
- Configurable for occupancy or vacancy mode
- Dual-channel dimming for color tuning (CCT)
Specifications
Part Number
CS107S.C1, CS107S.C2
Component Type
Sensor
Input Voltage
120-277 VAC
Frequency
50/60Hz
Output Current
6A Max at 120 VAC
6A Max at 277 VAC
Sinking Current
48.5mA
Bluetooth Transmit
100ft Max
Radio Frequency
2.4GHz ± 75MHz
Bluetooth Version
5.0
Housing Material
UL 94-5VA
Indoor/Outdoor Use
Indoor Use Only
Storage Temperature
-30°C to 85°C, -22°F to 185°F
Color
White
Warranty
5 year warranty
Compliance
UL1376,UL8750, RoHs
Safety
cULus Listed E504054
FCC ID: 2A26YCS107S
DID: D061367
DLC: NLTRC5KL0TN
